2020 Porsche 911 Carrera 4S MT (992.1) Specs

Here are the technical specifications of the 2020 Porsche 911 Carrera 4S with the 7-speed manual transmission. This information refers to the EU model. The technical data may vary from country to country.

2020 Porsche 911 Carrera 4S MT Specs

Engine

• Type: Six-cylinder boxer engine with biturbocharging; gasoline particulate filter (GPF)
• Cylinders: 6
• Valves/cylinders: 4
• Displacement: 2,981 cm³
• Bore: 91.0 mm
• Stroke: 76.4 mm
• Maximum power output: 331 kW (450 PS) at 6,500 rpm
• Maximum torque: 530 Nm at 2,300-5,000 rpm
• Maximum output per litre: 111 kW/l (151 PS/l)
• Compression ratio: 10.2:1
• Maximum engine speed: 7,500 rpm
• Cooling system: Water cooling with map-controlled thermal management and switchable water pump
• Valve control: VarioCam Plus Camshaft adjustment on intake and exhaust sides; valve lift switchover on intake side

Power transmission

• Drive system: Porsche Traction Management (PTM): active all-wheel drive with electronically regulated, map-controlled multi-plate clutch, variable torque distribution between front and rear axles; Porsche Torque Vectoring (PTV) with mechanical rear differential lock with asymmetric locking action
• Transmission: Seven-speed manual transmission with dual-plate clutch and dual-mass flywheel

Chassis

• Suspension and damping: Steel suspension and hydraulic gas-filled vibration dampers; Porsche Active Suspension Management (PASM)
• Front axle: Spring-strut suspension: wheels independently suspended on wishbones with trailing links and struts (McPherson type, Porsche-optimised)
• Rear axle: Lightweight multi-link suspension with wheels independently guided on five suspension arms
• Steering: Electromechanical power steering with variable steering ratio and steering pulse; optional rear-axle steering (RAS)
• Steering ratio: 15.0:1 (centre position); with RAS 14.1:1
• Steering wheel diameter: 360 mm
• Turning circle diameter: 11.2 m; with RAS 10.9 m
• Vehicle stability system: Porsche Stability Management (PSM) incl. ABS with extended brake functions

Brakes

• Brake system: Six-piston aluminium monobloc fixed-calliper brakes at the front, four-piston aluminium monobloc fixed-calliper brakes at the rear; electromechanical brake booster, electric parking brake
• Brake discs front: Grey cast iron, internally vented and cross-drilled
• Diameter: 350 mm
• Thickness: 34 mm
• Brake discs rear: Grey cast iron, internally vented and cross-drilled
• Diameter. 350 mm
• Thickness: 28 mm

Wheels and tyres

• Front wheels: 8.5J x 20 ET 53
• Front tyres: 245/35 ZR 20
• Rear wheels: 11.5J x 21 ET 67
• Rear tyres: 305/30 ZR 21

Dimensions

• Length: 4,519 mm
• Width: 1,852 mm (with door mirrors 2,024 mm)
• Height: 1,302 mm
• Wheelbase: 2,450 mm
• Track width front: 1,589 mm
• Track width rear: 1,557 mm
• Luggage volumes: 132 l
• Unladen weight (DIN): 1,530 kg
• Allowable gross weight: 1,980 kg
• Roof load: 75 kg (with Porsche roof transport system)
• Fuel tank capacity: 67 l

Performance

• Top speed: 306 km/h
• 0-60 mph: 4.0 seconds
• 0-100 km/h: 4.2 seconds
• 0-160 km/h: 8.8 seconds
• 0-200 km/h: 13.5 seconds

Fuel and Emissions

• Emissions standard: Euro 6d-ISC-FCM (EU6 AP)
• Fuel type: Super Plus (98 RON)
• Fuel consumption urban: 14.8 l/100 km
• Fuel consumption extra-urban: 7.4 l/100 km
• Fuel consumption combined: 10.1 l/100 km
• CO2 emissions combined: 231 g/km
• Efficiency class in Germany: G
• Fuel tank capacity: 67 l
• Drag coefficient (cd): 0.29

Check Also
2019 Porsche 911 Carrera 4S PDK Specs
2019 Porsche 911 Carrera 4S – 10 Fast Facts

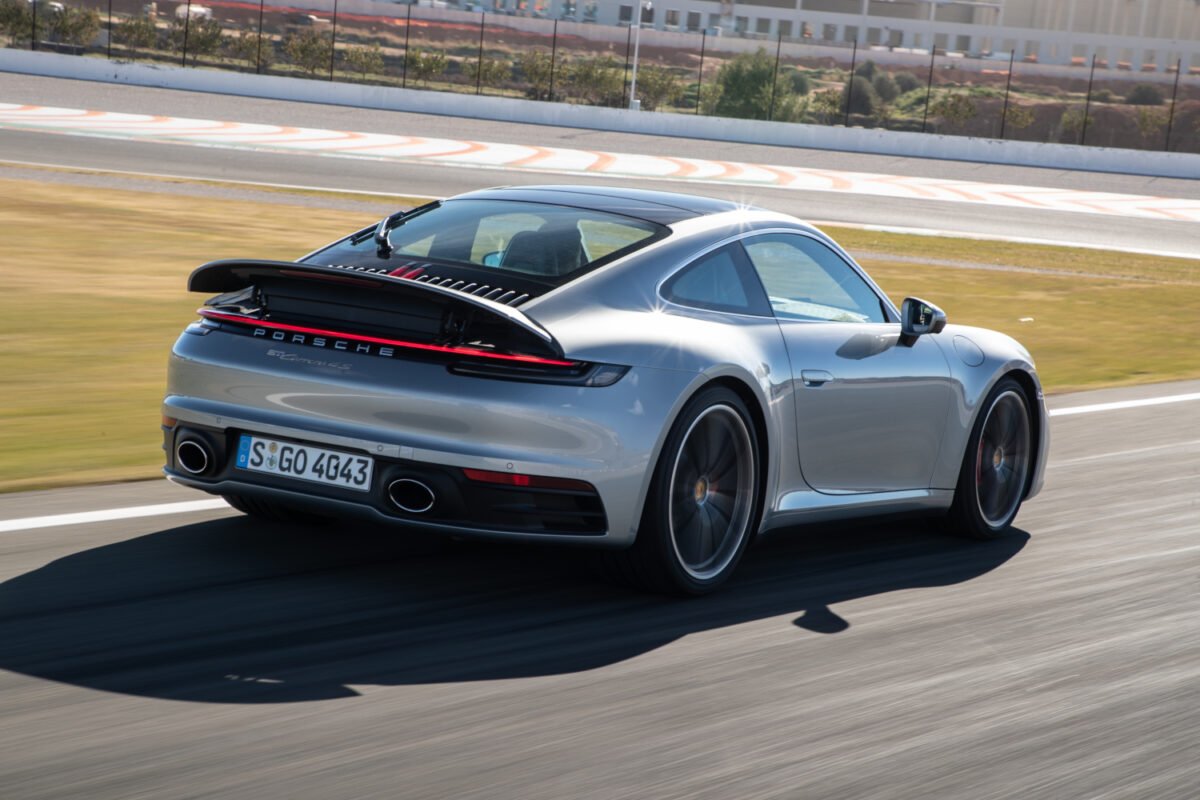

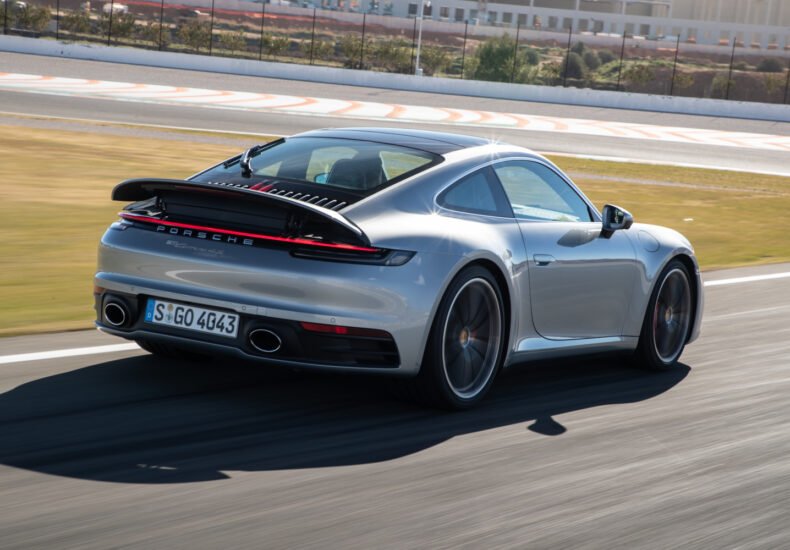

Image of a 2019 Porsche 911 Carrera 4S by Porsche
